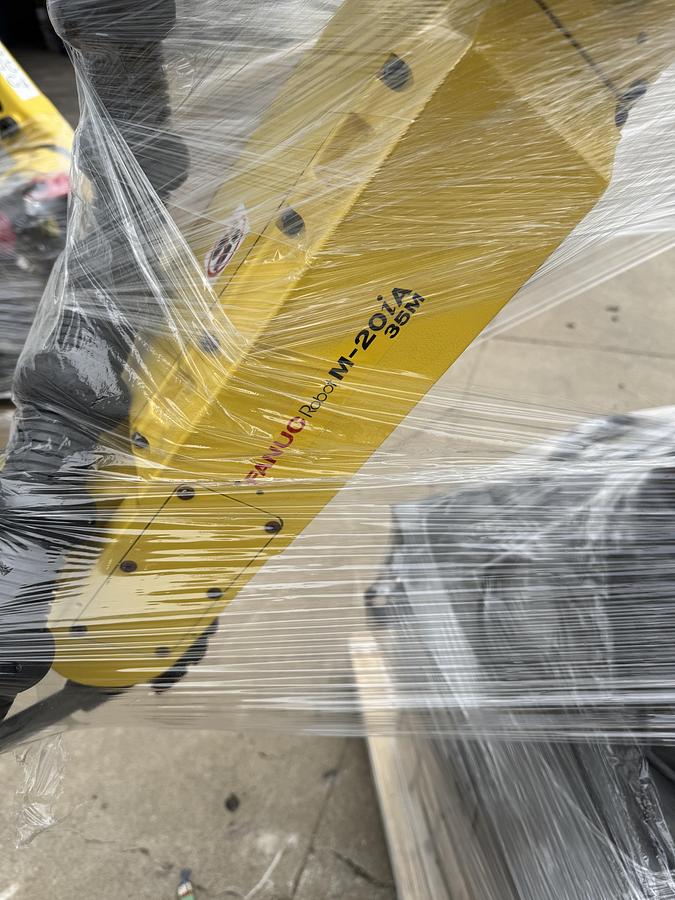

Used Fanuc M-20iA 35M 6 Axis Robot With R-30iB Plus Controller

This 2019 Used Fanuc M-20iA/35M 6 Axis Robot Is Eqquipped With A High Enertia Wrist And Fanuc R-30iB Plus Controller, Complete With Teach Pendant And Cables To Connect The Robot To The Controller. This Robot Has Very Low Mechanical Moving Hours And Is in Great Condition.

1-Used Fanuc M-20iA/35M 6 Axis Robot With R-30iB Plus Control.

Serial Number F243875

Date Of Manufacture 10/2019

Mechanical Unit Type A05B-1225-B705

Control Unit Type

Stk#105525

=====================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6

Payload: 35kg

H-Reach: 1813mm

Repeatability: ±0.08mm

Robot Mass: 252kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 180 °/s (3.14 rad/s)

J3 200 °/s (3.49 rad/s)

J4 350 °/s (6.11 rad/s)

J5 350 °/s (6.11 rad/s)

J6 400 °/s (6.98 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±461°

J4 ±400°

J5 ±280°

J6 ±900°

Applications:

Material Handling Robots

Assembly Robots

Machine Loading Robots

Machine Tending Robots

Equipped With:

Camera Connections

ASI Connections

ES Connections

EE Connections

Air Connection

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
